Page 2
By Paul Grubich
and Randy Cady
|

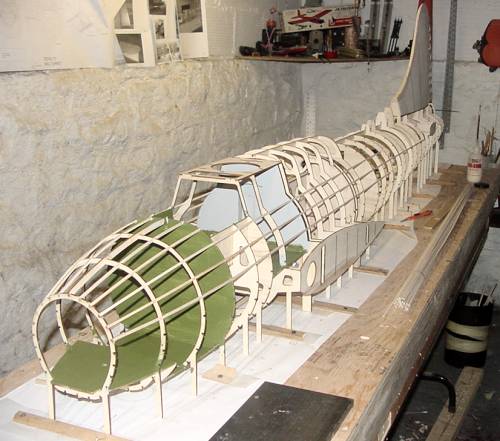

Construction continues as stringers are now being
put in place |
|

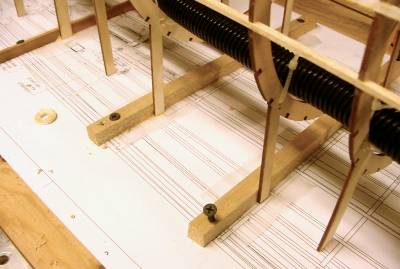

Randy glued strips across the bottom former supports and screwed
them into the building board to make sure the fuse did not twist during
the stringer/planking construction.
|

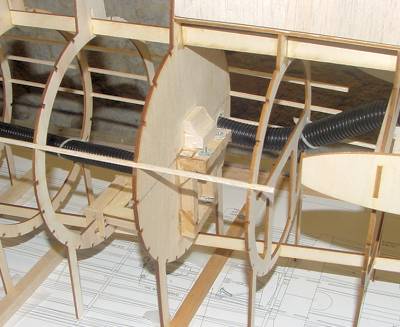

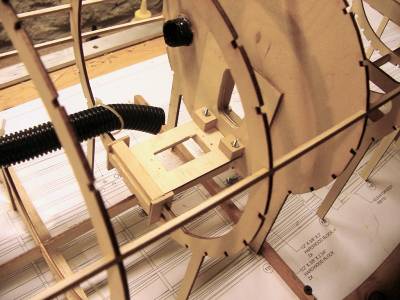

Tail wheel servo support bracket shown. This bracket can
be removed with the servo in case future servo replacement is needed.
Randy is also using wire tubing from Radio Shack to feed and secure all
wiring in the fuse. |
|
|
Tail wheel bracket will allow tail wheel removal and repair.
Tail wheels on large tail draggers take much abuse and it is a good
idea to make them easy to access.
|
|

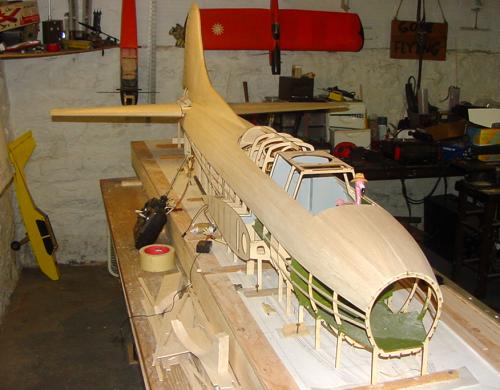

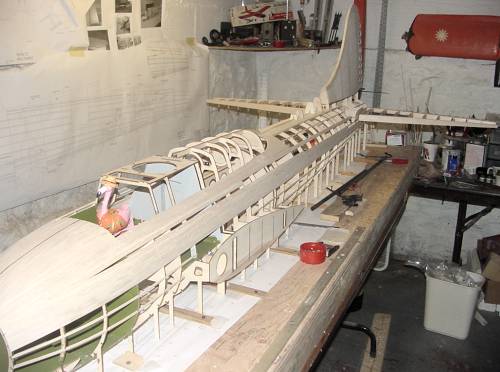

Planking has started and stabs are being fitted. Randy's Pink Flamingo
shop Forman sits in the cockpit to make sure all is well. |
|

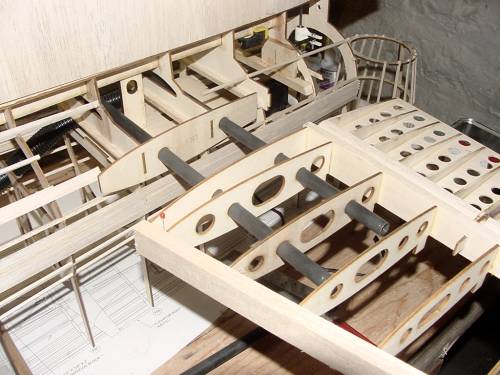

The wingspan plans allow for a removable stab assembly and
we think it is a great idea to help with transporting the plane. We are
using Precision Aero Composite carbon fiber Tail Plane Joiner PBG96TS
1/2" x 24" - Tube & Sockets for this task. |
|

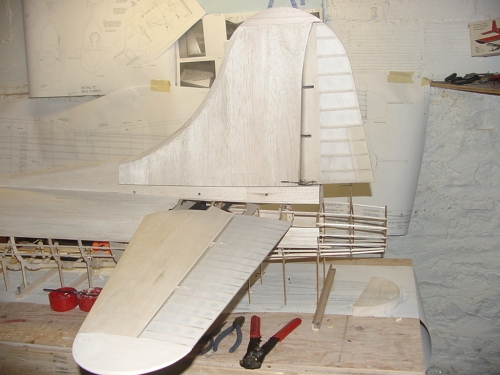

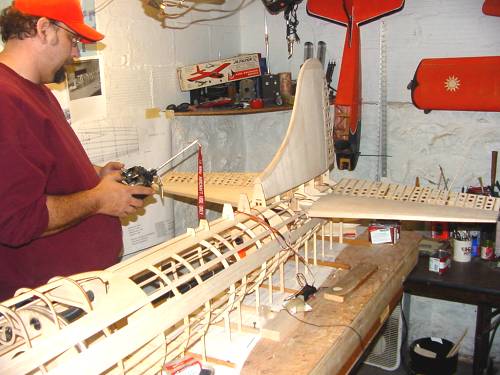

Stabs are now sheeted and servos are in place. Randy is shown testing
the elevator throw. |
|

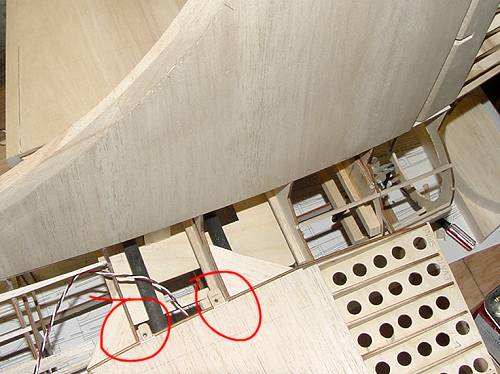

Circled areas show tabs for securing removable stabilizers.
Randy will put aluminum tubes to guide ball driver when fuse tail is
sheeted. |
|

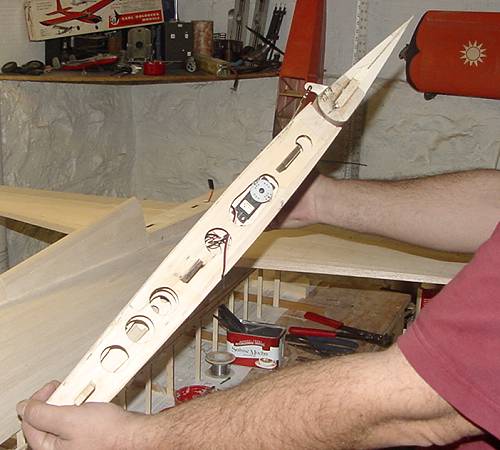

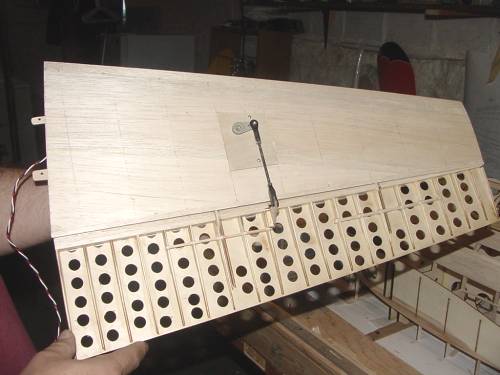

Stab bottom showing servo location and hatch assembly |
|

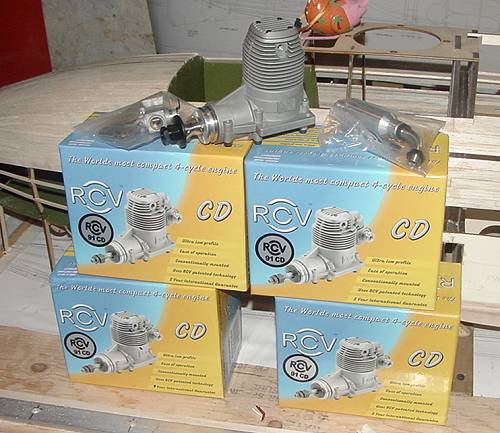

Our four RCV91-CD four cycle engines arrived today.
We like the RCV engines because they present a lower profile and there
should be much less sticking out of the cowl. These engines will be
mounted inverted. |
|
Progress continues as more sheeting is applied and
tail surfaces are nearing completion. |
|
Removable fin and stab are assembled to check fit.
Rudder and elevator are covered. |
|

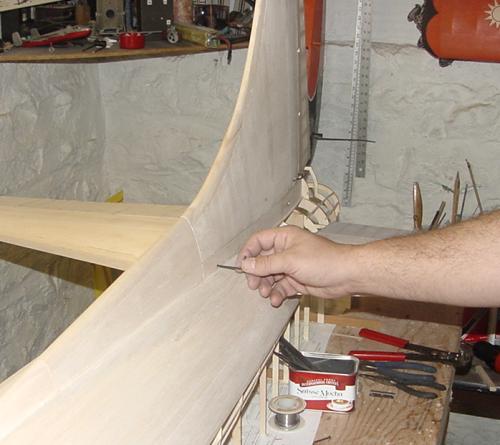

Randy shown removing bolts holding on fin assembly. |
|

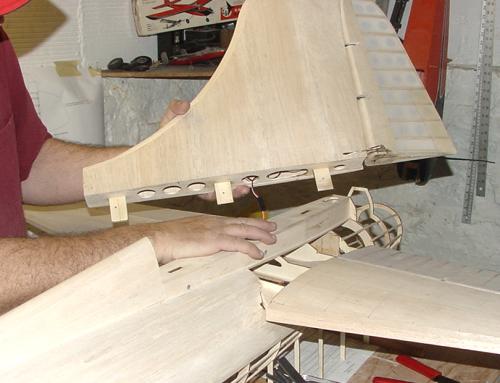

Randy removes the fin showing hardwood guides and
servo wiring. |
|
Servo location was changed to the fin for a more direct
linkage avoiding any unwanted movement. Randy is making sure all servos
are easy to access and remove in case of future problems. |
