Page 4
By
Paul Grubich and Randy Cady
|
Randy modified a retractable nose wheel for our tail wheel installation.
Here it is shown in the down position. |
|

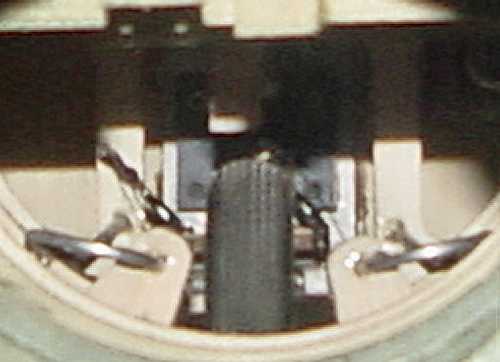

| View from the back showing the tail wheel in up position. You can see
the two aluminum tubes Randy used to route the steering cable back to the
tail wheel arm. |
|
|

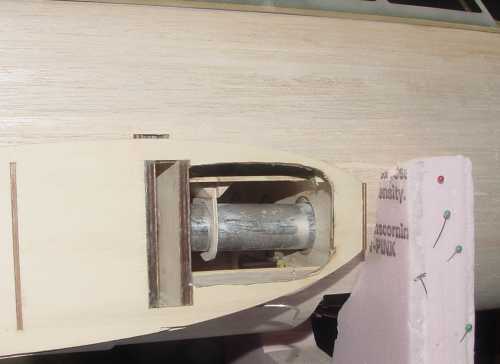

The air can for the tail wheel is located in the inner
front wing saddle. |
|

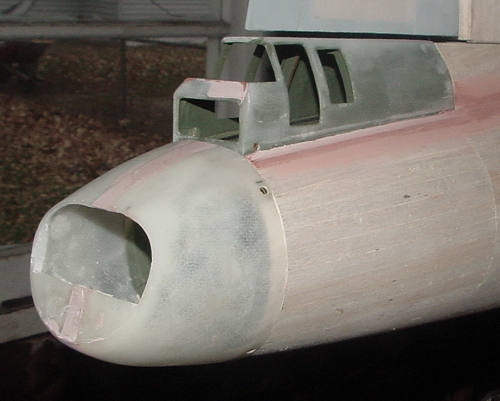

| The rear fiberglass gun cap and gunner station are attached and faired
in. Very small screws are used to make the end gun cap removable. |
|
|
The top turtle deck is now faired in and ready to mount
permanently. |
|

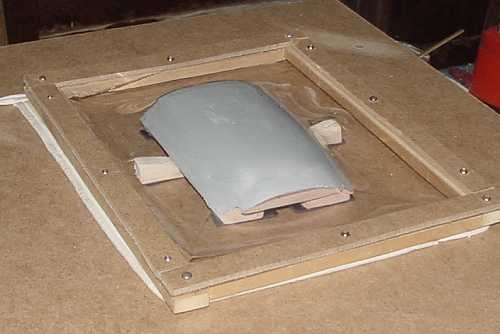

| Randy is vacuforming his own windows and nose plastic. Here is the plug
for the rear turtle deck top widow. |
|

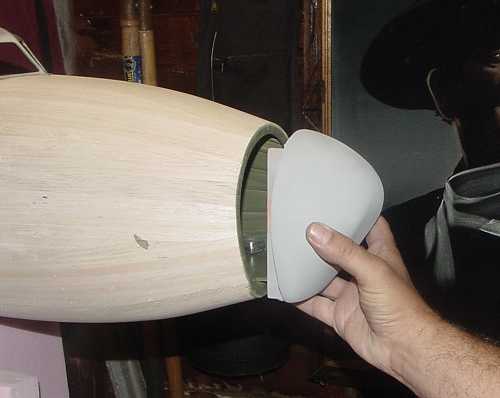

Here Randy is holding his plug for the Model E nose piece. The E model
B-17 had a flatter nose piece than the F. |
More to Come
