Construction Bob Sealy's ME 323

Page 5 - All pictures and captions by Bob Sealy

Sorry for the delay guys, but all did not go as planned. Getting back on the ME323 now, and as you can see, the fuselage is almost ready to fly. Still working on the nose plug, and my new target date to fly is the end of May, or sooner.

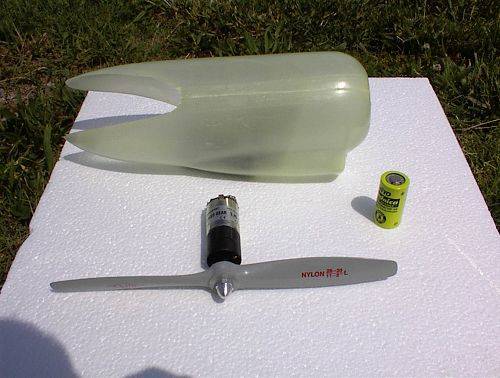

Here is one of the six naccelles, along with one of the 20 cells, and one of the six motor/prop assemblies. Three of the motors will have pusher props and run clockwise while the other three will use tractor props and be run counterclockwise. This should eliminate all of the motor torque from the six props. The battery will have ten cells, each at 3.0 amps. This will produce a 12 volt, 3 amp battery. Two of these assemblies wired together in parrallel, thus the twenty cells, will produce 12 volts, with 6 amps. That is one amp per motor. This should produce flights in the seven to 9 minute range, plus some extra if there are some good thermals in the area.

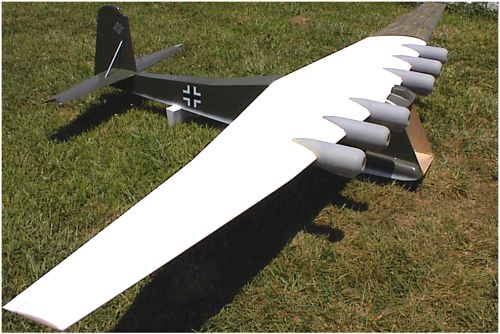

Here is a picture showing the completed, ready to paint, wing, sitting atop the already painted fuselage. At this stage, the total weight is 11 pounds, or 5 pounds of fuselage and 6 pounds of wing. My battery pack, along with the six electric motors, will weigh about 4 pounds. That leaves me about a pound for radio in order to hit my target weight of 15 to 16 pounds. In all likelyhood, I will probably end up with a total flying weight of about 16 1/2 to 17 pounds. Still not bad for a 181" wingspan airplane. After I get the wings painted, and motors installed, I will be tackling the plug for the clam shell doors. After the dorrs are made and installed, the radio will be finished, and it will be ready to fly. Notice I said the airplane will be ready. It may take the pilot, me, a few days to build up some nerve, although I expect it to be nothing more than a large, underpowered glider. Quite like the original.


Here we are in the closing stages. At this point, everything is completed except for the fiberglass nose section. All motors are installed, wired, and ready to fly. All servos, only six to be exact, are installed, receiver and speed controller in place, and motor battery assembled and installed. At this stage, the airplane weights in at 15 3/4 pounds. The nose should bring the total flying weight in at just under 16 pounds. Only a pound over what I would have loked to obtain. As soon as the fiberglass nose is painted, and a few more markings are applied, the Me 323 will be ready to fly. If all goes as planned, it should be quite uneventful.
